YUSUNG E&G

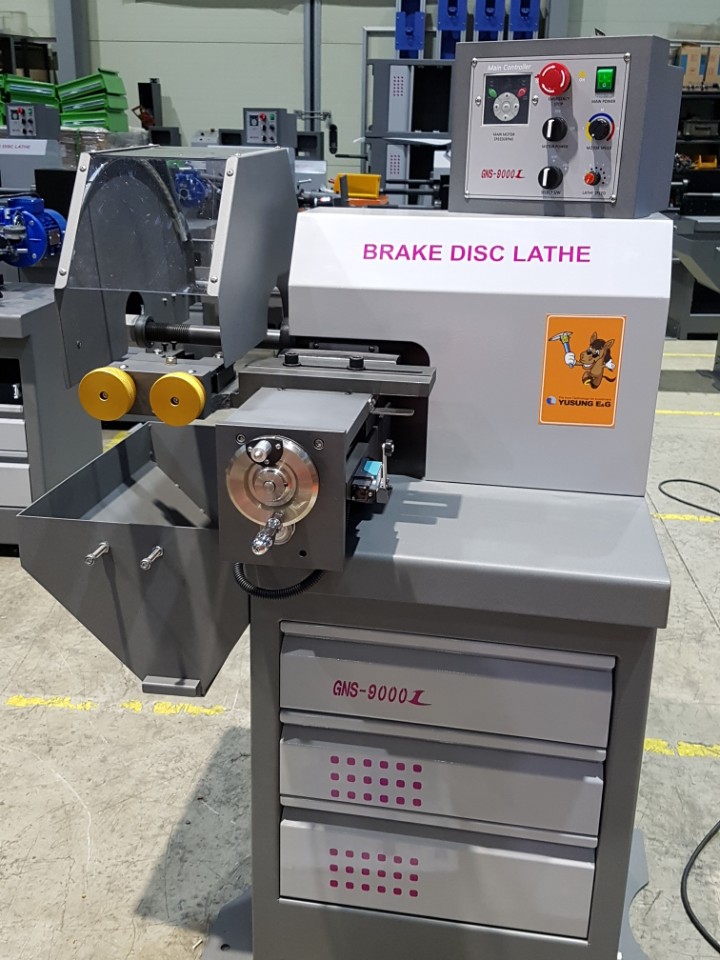

GNS9000ELD is a single phase 240V brake and drum lathe. The spindle shaft rotation is controlled by a Samsung inverter from 0  to 120 rpm thus resulting a perfect refacing of a disk rotor or brake drum. It  has a fully automatic or manual operation and includes all the adapters you need to turn both disks and drums

Category:

Description

Technical Specification:

  • Motor: 110/220V, 50/60 HZ X 1/2 HP Single phase.
  • Shaft RPM: 0-120 RPM Variable Speed.
  • Disk Working Dimensions: Thickness 90mm X Diameter 450mm.
  • Drum Working Dimension: Thickness 120mm X Diameter 450mm.
  • Dimension: (H)1300mm X (W)850mm X (L)800mm
  • Total Weight: 170kg
