U-B30Y
Ultra-Thin 3.0 Tones Wheel Free Scissor Lift.
Description

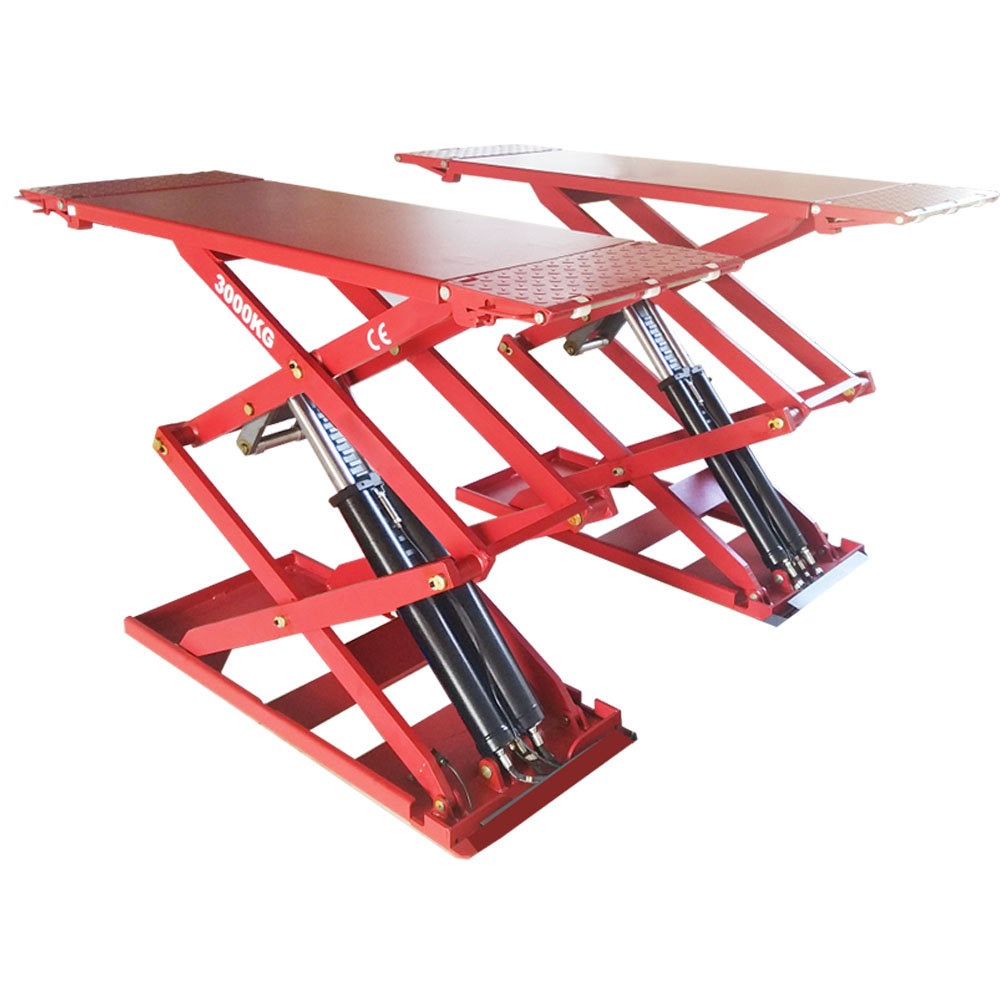

Ultra-Thin 3.0 Tones Wheel Free Scissor Lift.
The U-B30Y Scissor lift has a robust structure and can lift vehicles up to 3 Tones. With its small height, 105 mm, can be installed on the floor directly without pit necessities. Has a double hydraulic system control which ensures platform leveling during lifting and descending. Access ramps can be tilled thus extending lifting area and longer vehicles can be lifted with safety.
Safety Features:
Precision machined safety lock
Synchronized hydraulic cylinders system
Safety descending stop & alarm
Safety valve for anti-explosion of hydraulic system
Height limit switch
4 rubber pads
Additional Information.
Product: Ultra-Thin Wheel Free Scissor Lift
Product Code: B30Y
Capacity: 3.0 T
Lifting height: 1850 mm (72.9″)
Min height: 105 mm (4.1″)
Platform length: 2020 mm (79.5″)
Power supply: 220V 1PH 50/60Hz 2.2KW 220/380V 3PH 50/60Hz 2.2KW
Release: Pneumatic Lock Release
