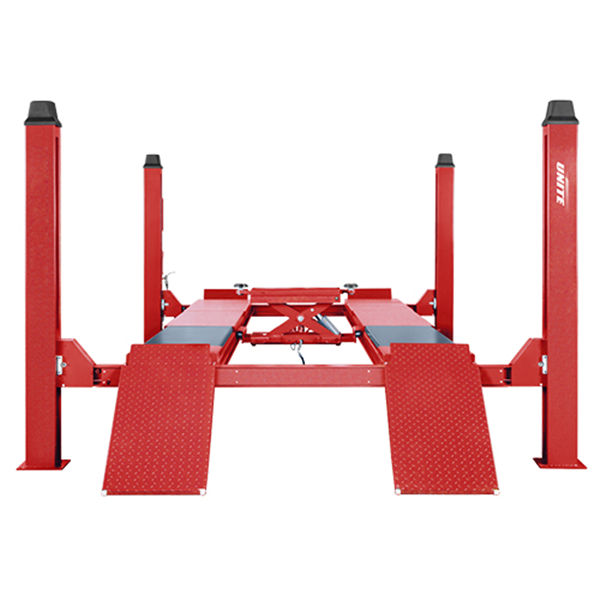

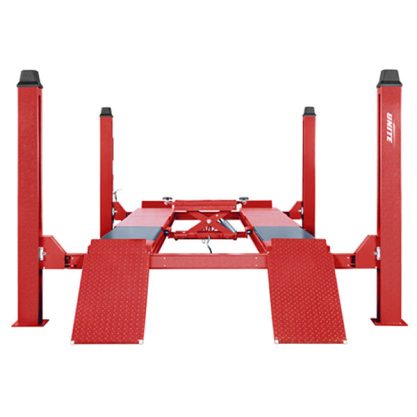

U-FS40
Wheel Alignment Four Post Lift
Description
U-FS40 four post lift with single sided manual lock release, and 4000kg Capacity, and the hydraulic cylinder beam stored conveniently under the runway, Is the most versatile piece of equipment for the modern vehicle service station. All the features you want, in an affordable price tag. For those shop owners who want the reliable cable drive lifting mechanism, this is the model for you. It’s stout frame is fabricated from heavy gauge C-channel steel and a formidable hydraulic cylinder working in conjunction with big pulley for steel rope cable drive system for years of trouble free and reliable service. The 4000kg lifting capacity will accommodate most trucks along with standard automobiles and passenger cars.
Desacription:
4 post lift
Product Code: U-FS40
Capacity: 4.0Tones
Lifting height: 1750mm (69″)
Platform length: 4250 mm (167″)
Min height: 250 mm (9.8″)
Power supply: 220V 1PH 50/60Hz 2.2KW 220/380V 3PH 50/60Hz 2.2KW
Safety Release: Manual Lock Release
Specification:
Product Code: U-FS40
Capacity: 4.0 Tones
Lifting height: 1750mm (69″)
Platform length: 4250 mm (167″)
Min height: 250 mm (9.8″)
Power supply: 220V 1PH 50/60Hz 2.2KW 220/380V 3PH 50/60Hz 2.2KW
Safety release: Manual Lock Release
Download Product Brochure:
