LAVAPEN X

Manual high-pressure 80 BAR metal washer with hot liquid in closed cabin

This system performs the successful washing of small and medium sized mechanical parts.
Washing is carried out manually with two gloves in the front part.

The appropriate washing results are ensured by a high pressure pump and a special spray-nozzle. In this configuration (X), the machine is fed by singlephase current.
It is then possible to heat the washing liquid up to 60 °C, and to wash parts with an adjustable pressurised pump up to 80 bar.

DETAILS:

LAVAPEN parts washer makes possible the manual parts washing inside a closed and wholly safe cabin.

Operators locate parts inside the machine, close the cover and put his arms in the gloves then press the pedal to make the spraying pump work. A non-slip hand grip spray nozzle allows operators to wash thoroughly all parts holes and those parts difficult to reach.

2 different sizes of machines and 3 types of cleaning are available:

  •     fully pneumatic for the use of strongly aggressive products (P version)
  •     electric supply for water-based liquid heating to 60 °C with a max washing pressure of 9 bar (C version)
  •     electric supply for water-based liquid heating to 60 °C with a max washing pressure up to 80 bar (X version)

LAVAPEN parts washers can be equipped on demand with a compressed air blowing gun placed inside.



What is included in each LAVAPEN X



  •     Hatch closure assisted with gas springs and fastening hook
  •     Black latex gloves 660 mm long
  •     Tank border gasket
  •     Structure and sheet metal in contact with liquid in Aisi 304 stainless steel
  •     Special washing nozzle with jet under pressure and non-slip grip
  •     Minimum level switch
  •     LED light to illuminate the inside of the washing area
  •     Pressure gauge for control of pressure delivered
  •     Safety limit switch on cover opening
  •     Pedal-controlled washing action
  •     Adjustable feet
  •     Closing hatch with hoses and tempered glass
  •     Compressed air blowing gun
  •     Manually adjustable washing pressure
  •     IP65 electrical system, electromechanical controls
  •     Heating of the liquid with stainless steel electric heating element
  •     Internal welding bleaching
  •     Intake and delivery pump hose (easy maintenance)
  •     Drain valves for emptying tanks
  •     Manual valve for surface liquid drain (whole oil).



What can be added as an accessory:



  •     Stainless steel cartridge filter with pump (10/25/50 micron)
  •     Immersed magnet for separation of ferritic or grinding powder
  •     High pressure washing gun
  •     Heating start-up weekly programmer
  •     Heating with external resistances, not in contact with the liquid
  •     Machine equipped with wheels for handling
  •     Increased loading capacity to 150 kg

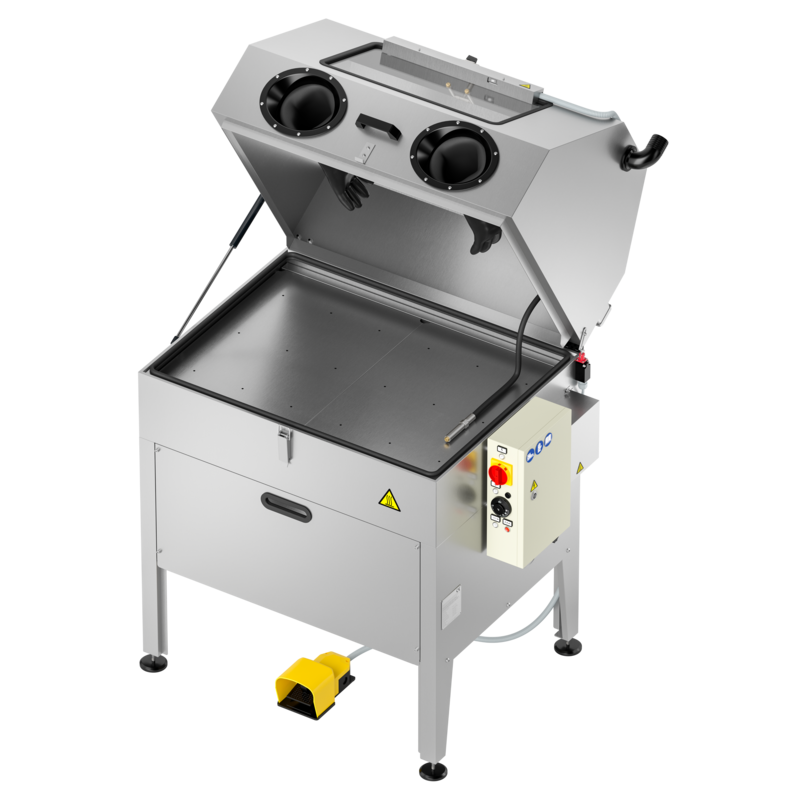

Product Image:
