SIMPLEX BIG

Parts washers with rotary basket, plc and touch screen, Simplex Big performs the successful automatic washing of medium and large size mechanical parts.Washing is carried out by the action of upper, lower and side nozzles. The slow rotation of the platform is ensured by a gear motor with a torque limiter. A PLC management enables numberless customization thanks to a wide range of accessories.

DETAILS

Simplex Big parts washers are ideal for highly heavy medium and big-sized parts washing.

Simplex Big parts washer is equipped with an external trolley where parts are placed.

Operators push then the platform with parts into the washing cabin, close the vertical door through a two-hand control system and start the working process.

A stainless steel horizontal pump carries out the washing through the liquid intake from the tank and sprays it over the parts while a gear motor slowly rotates the platform.

The parts washer can be entirely designed thanks to many accessories available and the whole working process is controlled by an industrial PLC.

On a colour touchscreen display can be changed the operating parameters such as the liquid temperature, set the heating starting and switching off times, and checked the operation of each device installed as well as changed the 16 washing programs available.

Simplex Big parts washers are extremely solid and have a long life cycle, and reduce operator hours, thus ensuring excellent results with very low operating costs.

Available accessories: diesel or natural gas burner, high pressure pump, integrated manual washing, hot-air drying.

What is included in each SIMPLEX BIG

•     Pneumatic opening and closing of the lid with 2 safety hands control
•     Timed electric exhaustion of steam
•     Aisi 304 stainless steel external trolley with drip tray and wheels with safety brake
•     ISO pneumatic cylinders and “fall-proof” pneumatic safety valves
•     Thermal tank insulation with Aisi 430 stainless steel panels
•     Siemens® electric power parts
•     4” color touchscreen display for settings and programs
•     Aisi 304 stainless steel filter in pump intake
•     Triple gasket for door (bottom, top and side)
•     Structure and sheet metal in contact with liquid in Aisi 304 stainless steel
•     Minimum level switch
•     Gearmotor for basket rotation with torque limiter and centering sensor
•     Sludge drain hatch for simple tank cleaning
•     Reinforced pressed grating platform with galvanized steel raised outer edge
•     Stainless steel electric pump with special seals
•     Weekly programming to start heating and deoiler (if installed)
•     IP65 electrical system, management via PLC touchscreen (DGT V4)
•     Heating of the liquid with stainless steel electric heating element
•     Internal welding bleaching
•     Stainless steel bottom section load-bearing structure
•     Aisi 304 stainless steel washing pipelines with professional stainless steel flat nozzles
•     Drain valves for emptying tanks
•     Manual water filling valve

ACCESSORIES NOTES LEGEND

B: panels under the basket are mandatory (if in the price list for that model)

C: the useful washing height is reduced by 130 mm

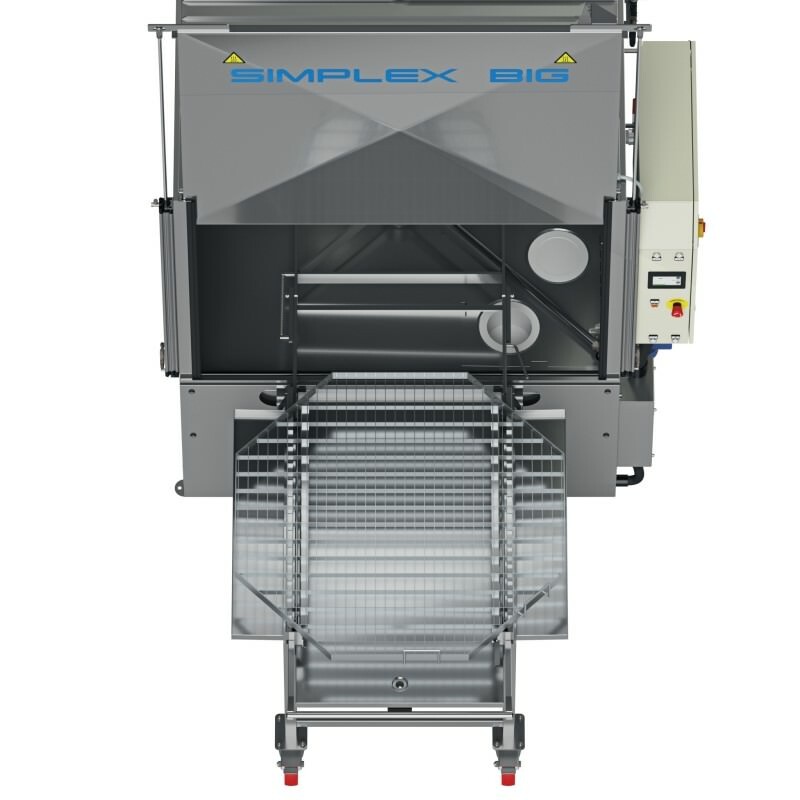

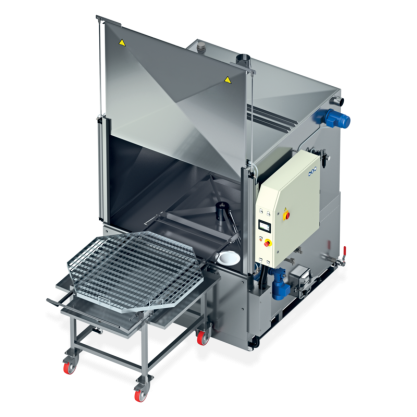

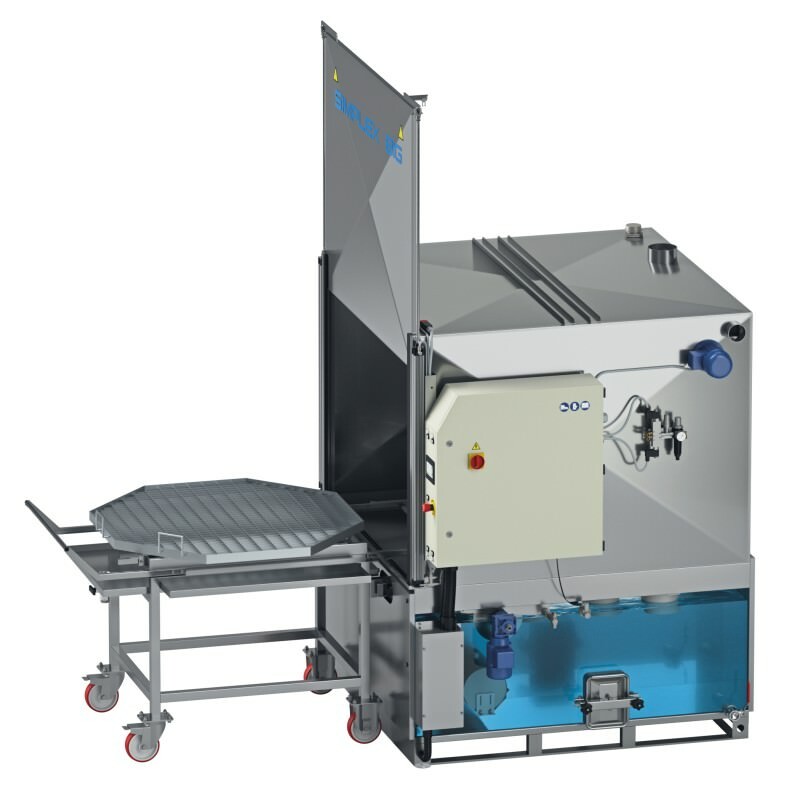

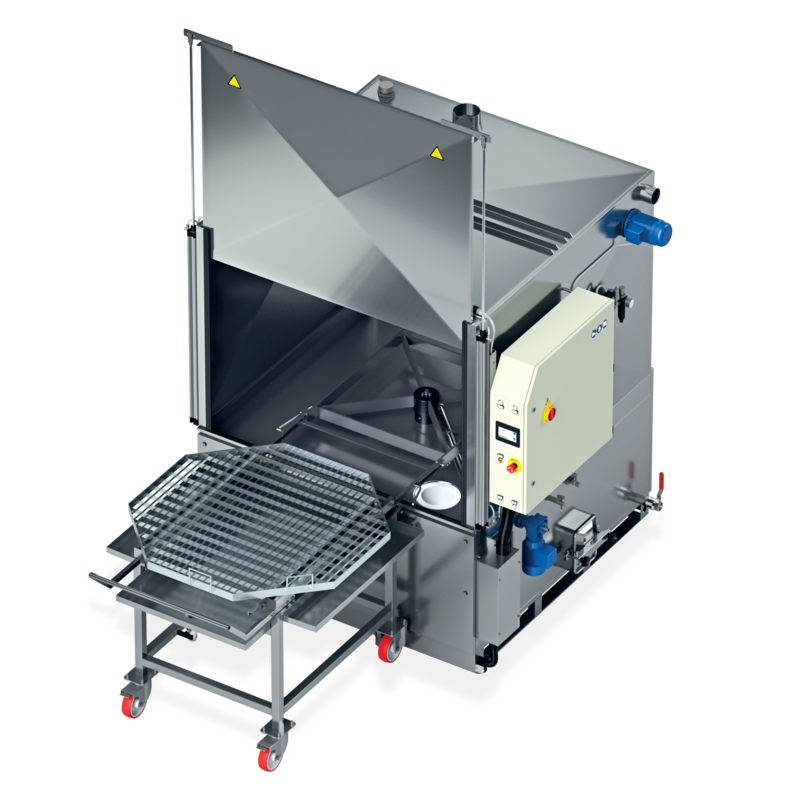

Product Images:
