Description

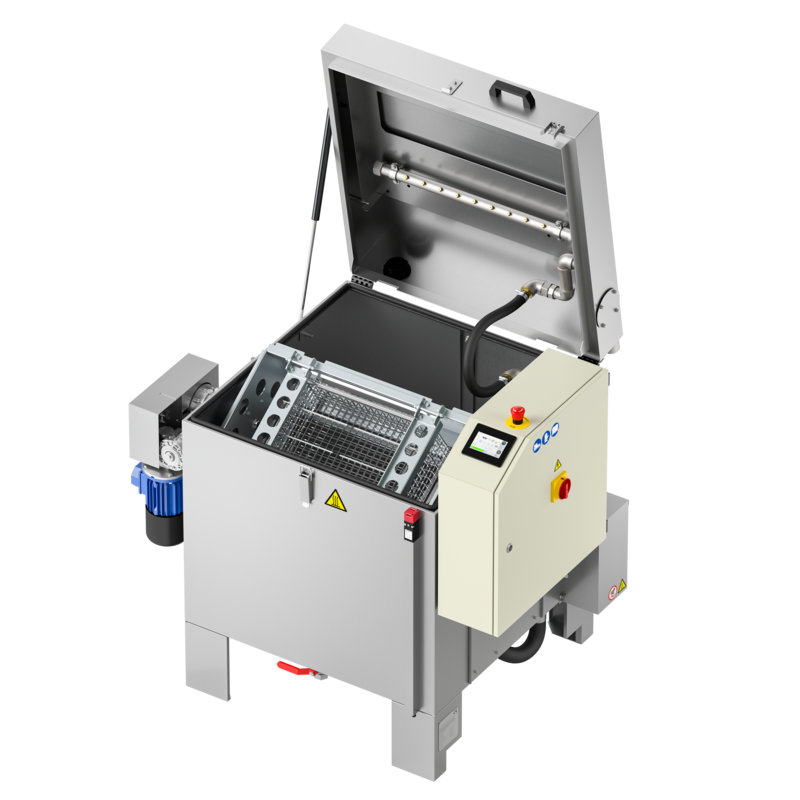

TWISTER
Parts washer of pieces placed in a box, rotation along a horizontal axis
Twister is a machine that performs the washing of parts in continuous rotation along a horizontal axis.
The pieces are placed inside an electrowelded stainless steel mesh box with lid.
It is particularly suitable for washing small or medium sized pieces, such as turning parts, gaskets, etc
What is included in each TWISTER
- Hatch closure assisted with gas springs and fastening hook
- Siemens® electric power parts
- 4” color touchscreen display for settings and programs
- Aisi 304 stainless steel filter in pump intake
- Tank border gasket
- Structure and sheet metal in contact with liquid in Aisi 304 stainless steel
- Minimum level switch
- Safety limit switch on cover opening
- Stainless steel electric pump with special seals
- Weekly programming to start heating and deoiler (if installed)
- IP65 electrical system, management via PLC touchscreen (DGT V4)
- Heating of the liquid with stainless steel electric heating element
- Mechanical rotation of basket via gearmotor
- Internal welding bleaching
- Intake and delivery pump hose (easy maintenance)
- Aisi 304 stainless steel washing pipelines with professional stainless steel flat nozzles
- Drain valves for emptying tanks
- Manual water filling valve.
HT VERSION
- Electric vapour extraction
- Heat insulation with Aisi 430 stainless steel panels
- Safety limit switch with cover opening lock during cycles
- Panels under basket with grease and solids collection sump filters
ACCESSORIES NOTES LEGEND
A: vapour extraction is included in the HT version
B: panels under the basket are mandatory (if in the price list for that model)
D: vapour extraction is mandatory (if in the price list for that model)
Download Product Brochure:
