John Bean b9200

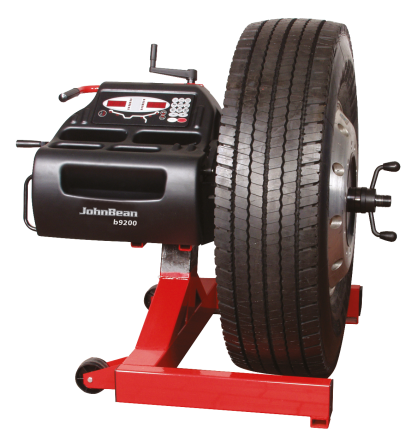

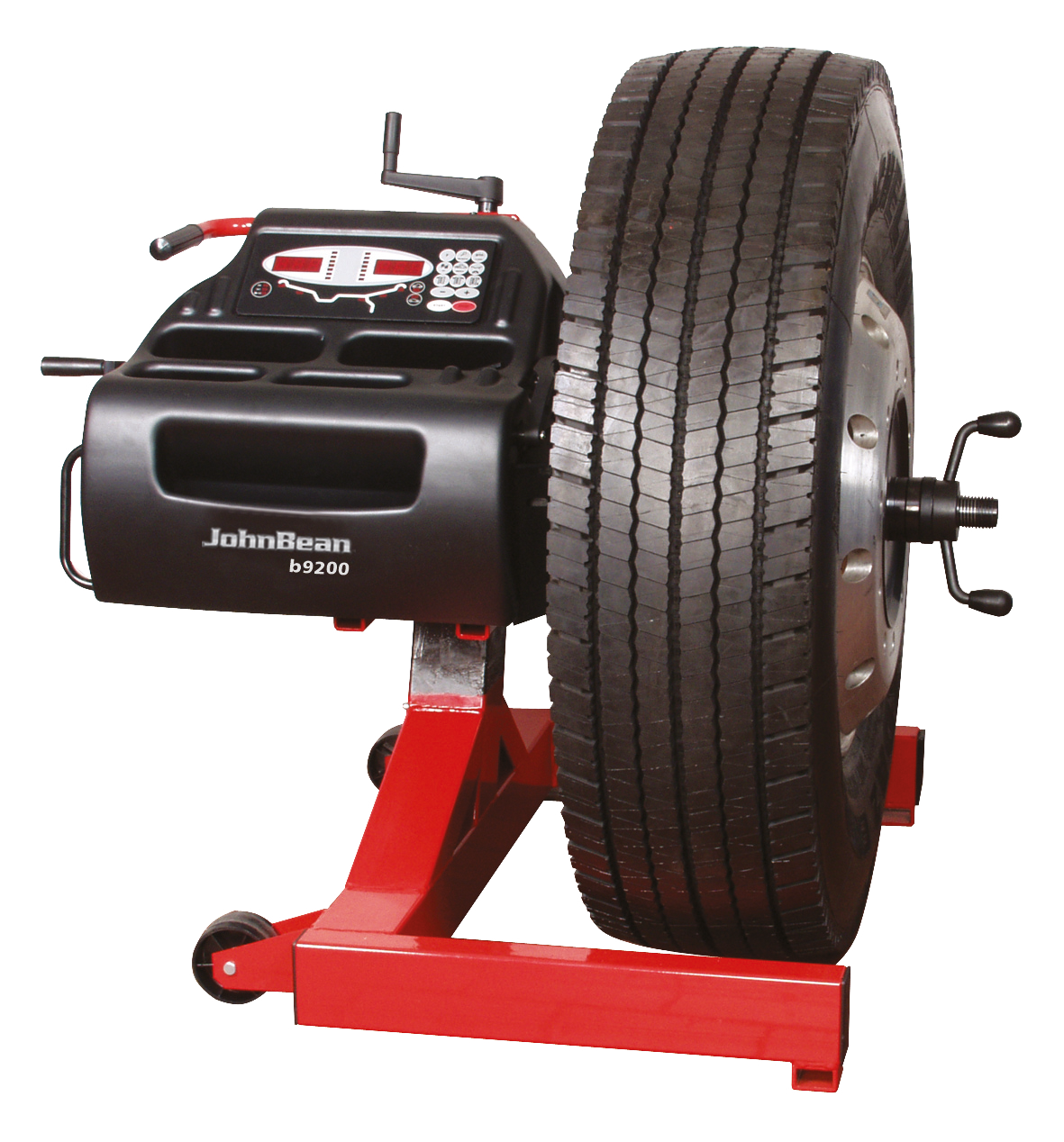

John Bean b9200 Truck Balancer

Product description:
This hand-spin mobile balancer is specially designed for truck wheels, featuring high measurement accuracy. Owing to its low space requirement and the good price/performance ratio it is the optimum equipment for professional mobile truck service.

Get flyer here

Categories: ,

Description

Key Features:

  • Automatic input of distance and diameter (2D SAPE)
  • Input of width via keys
  • Acceleration to measuring speed via left-hand crank
  • No loading device required
  • Lightweight compact design – easy to position
  • Minimum space requirement
  • Good price / performance ratio
  • Gauge arm with weight clamp
  • 5 alloy modes
  • Spoke mode
  • Electronic friction brake for braking after measurement
  • Virtual plane imaging (VPI) technique
  • Spacious weight tray
  • Conspicuous display
  • Truck cone adaptor with spacer, cone for light truck wheels and 2 truck cones, weight pliers, 230 V power pack
  • 12 VDC battery and rim width callipers as optional extras



Technical Features:

max. diameter of centre bore diameter (mm) 120 – 174 / 198 – 225 / 270 – 286,5
Shaft diameter (mm) 40
Measuring speed (rpm) < 100
Measuring time > 20
Rim width (inch) 2 – 20
Rim diameter (inch) 8 – 26
Rim diameter – manual input (inch) 8 – 30
Wheel width max. (mm) 650
Wheel diameter max. (mm) 1300
Wheel weight max. (kg) 250
Wheel distance input semi-automatic / gauge arm
Input of rim diameter semi-automatic / gauge arm
Input of rim width manually
Power supply 200-240 VAC 1 ph 50/60Hz
Width 1185
Depth 910
Height 1160
Weight (kg) 125
Noise level (dB (A)) < 70
