John Bean b9250

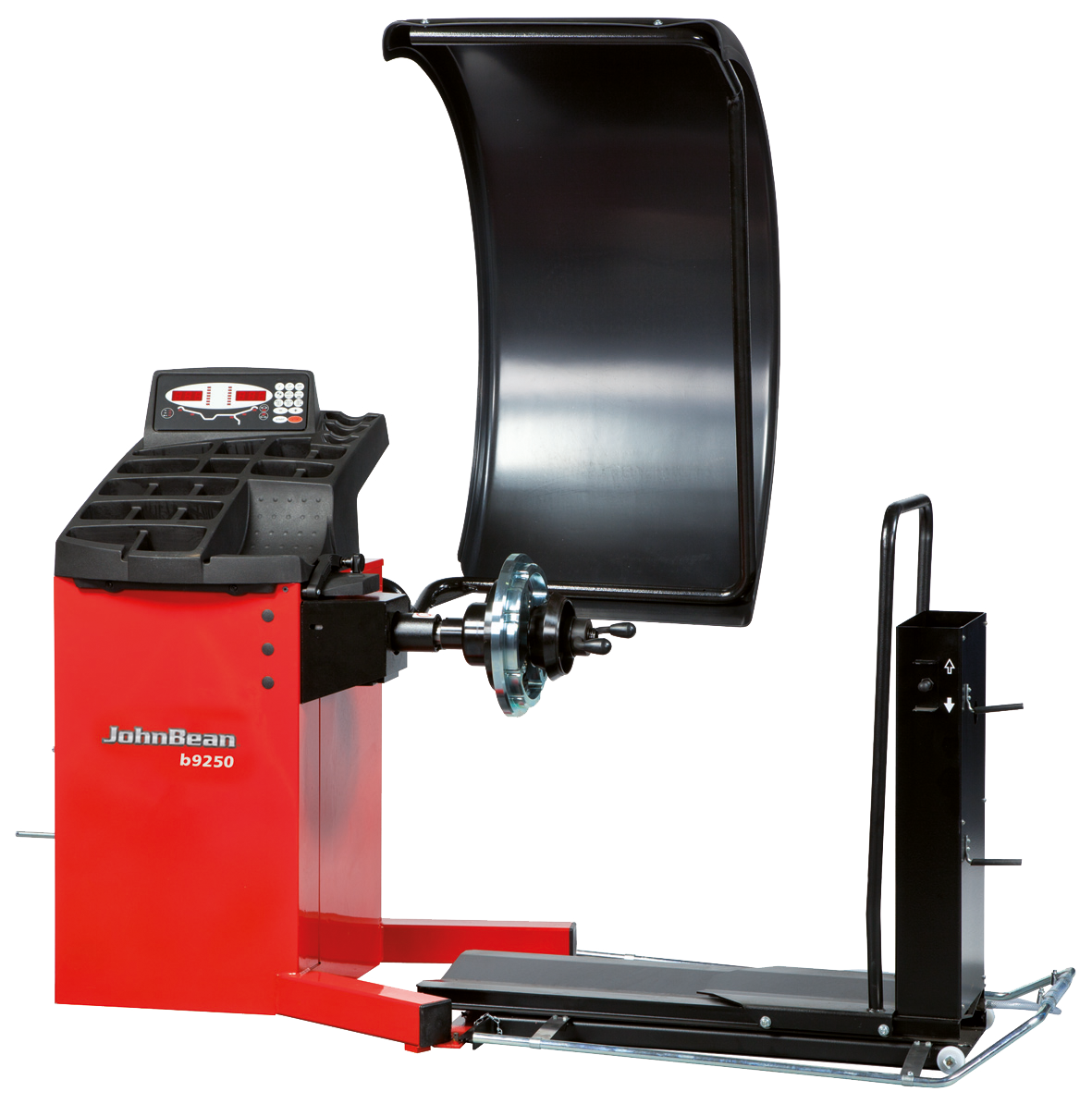

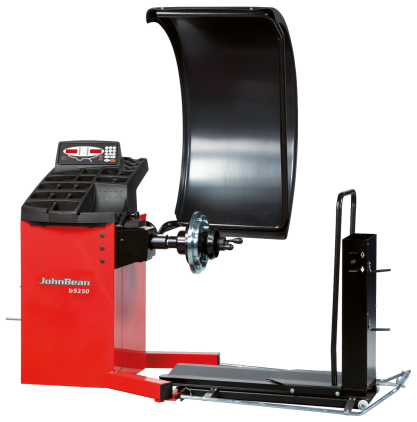

John Bean b9250 Truck Balancer

Product description:
The b9250 is an easy-to-operate truck wheel balancer with pneumatic loading device and low space requirements. Consequently, it is particularly suited for workshops and tyre shops which handle heavy truck wheels.

Get Flyer here

Categories: ,

Description

Key Features:

  • Automatic input of distance and diameter (2D SAPE)
  • Input of width via keys
  • Including pneumatic loading device
  • Gauge arm with weight clamp
  • 5 alloy modes
  • Spoke mode
  • Electronic friction brake for braking after measurement
  • Virtual plane imaging (VPI) technique
  • Spacious weight tray with 16 weight compartments
  • Conspicuous display
  • Truck cone adaptor with spacer, cone for light truck wheels and 2 truck cones, weight pliers, truck rim width callipers, wheel guard



Technical Features:

Shaft diameter (mm) 40
Measuring speed (rpm) 100
Measuring time (s) > 20
Display (LED, LCD, TFT) LED
Rim width (inch) 2 – 20
Rim diameter (inch) 8 – 26
Rim diameter – manual input (inch) 8 – 30
Wheel width max. (mm) 650
Wheel diameter max. (mm) 1300
Wheel weight max. (kg) 250
Wheel distance input semi-automatic / gauge arm
Input of rim diameter semi-automatic / gauge arm
Input of rim width manually
Power supply 230 VAC 1ph 50/60 Hz
Width 1345
Depth 1455
Height 2005
Weight (kg) 233
Noise level (dB (A)) <70
