Description

Key Features:

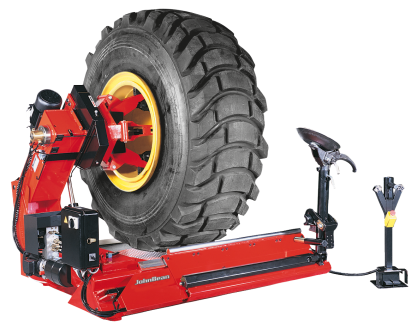

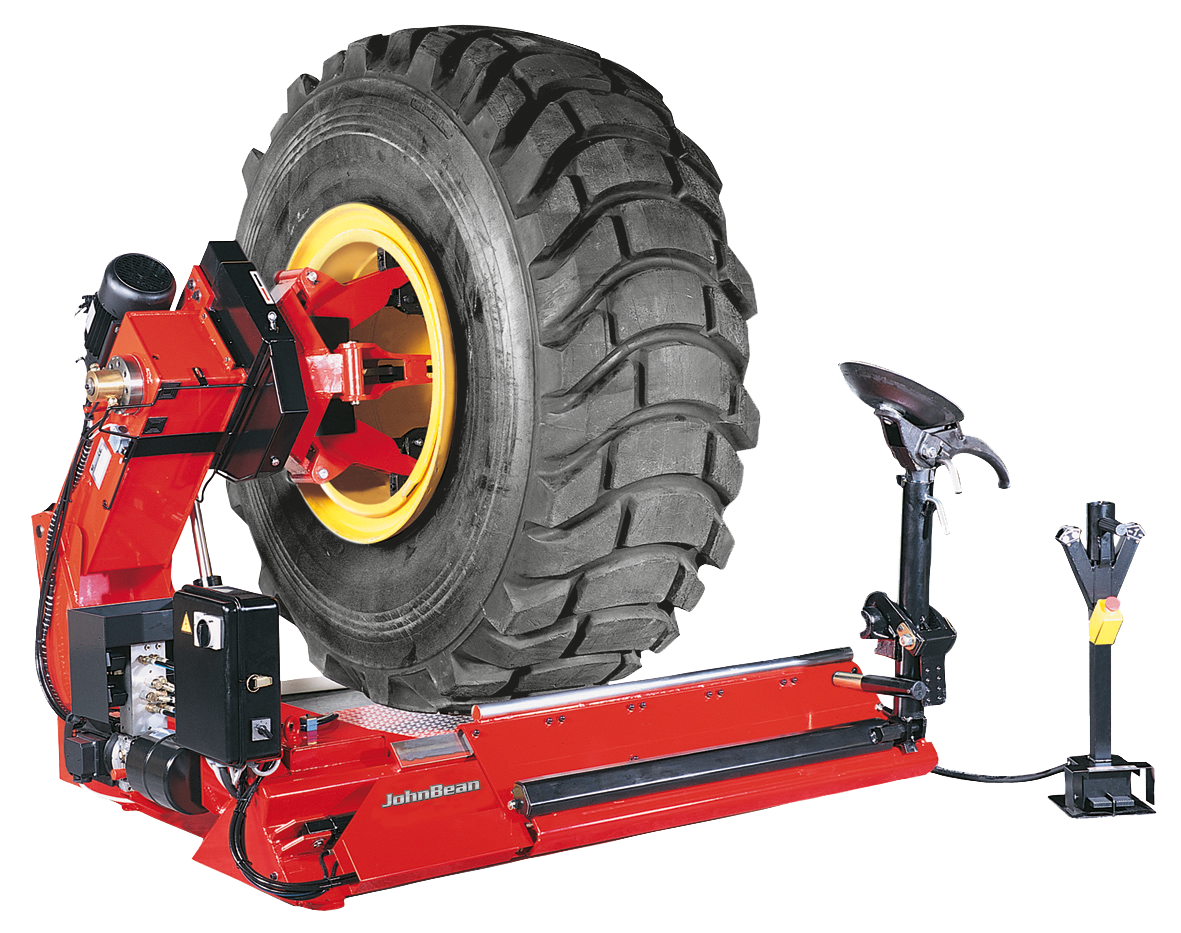

• Truck tyre changer for tyre shops to mount and demount tyres of utility vehicles and earth moving machines
• Rugged chuck design
• Double reinforced frame allowing to handle wheels of up to 1500 kg
• Unique patented bead breaker disc for easy operation
• Control unit with switch to control two operations simultaneously
• 2 Chuck speeds, preset with a switch
• Vast range of standard accessories

Technical Features:

Clamping range (inch) 14 – 44
Clamping capacity (with extension) (inch) 44 – 56
Wheel width max. (inch) 43
Wheel diameter max. (mm) 2300
Wheel weight max. (kg) 1500
Bead breaker force (kN) 33
Chuck speed (rpm) 4/8
Torque max. (Nm) 3100
Power supply 400 VAC 3ph 50Hz
Width (mm) 2565
Depth (mm) 1800
Height (mm) 850
Noise level (dB (A)) < 70
Weight (kg) 945
