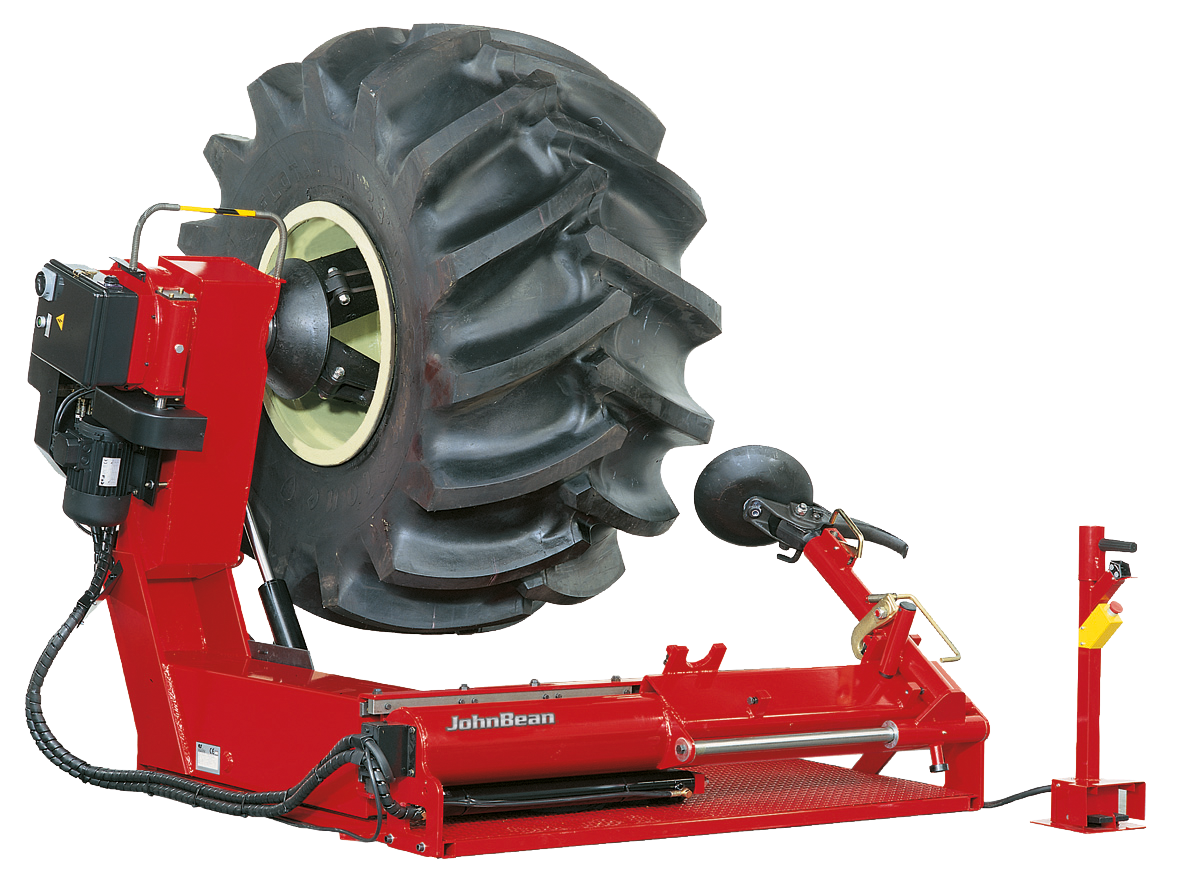

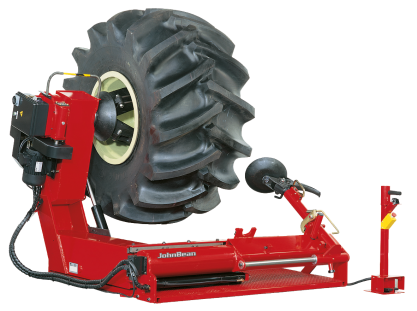

John Bean T8056 Truck Tyre Changer

Product description:
Designed for use with truck, tractor and OTR wheels of 14″ – 56″ rim diameter the John Bean T8056 is equipped with a unique bead breaker disc for bead breaker forces of up to 33 kN.

Get flyer here

Categories: ,

Description

Key Features:

  • Truck tyre changer for truck, utility vehicle and OTR wheels of 14“ – 32“ and up to 56″ with optional extensions
  • Electro-hydraulic drive
  • Rugged over-sized chuck
  • Mobile control unit
  • Positioning of wheel and tool within a wide accurate adjustment range
  • Infinitely self-centring universal hydraulic chuck
  • Unique bead breaker disc for bead breaker forces of up to 33 kN
  • Bead breaker steel disc mounted on specially hardened bushing is easy to lubricate and ensures long life



Technical Features:

Clamping range (inch) 14 – 32
Clamping capacity (with extension) (inch) 14 – 56
Wheel width max. (inch) 32
Wheel diameter max. (mm) 2350
Wheel weight max. (kg) 1500
Bead breaker force (kN) 33
Chuck speed (rpm) 4/8
Torque max. (Nm) 3100
Power supply 400 VAC 3ph 50Hz
Width (mm) 2100
Depth (mm) 2100
Height (mm) 1480
Noise level (dB (A)) < 70
Weight (kg) 761



Variant Version:

T8056R

Designed for use with truck, tractor and OTR wheels of 14″ – 56″ rim diameter the John Bean T8056R is equipped with a unique bead breaker disc that provides a bead breaking power of up to 33 kN. Also included with this superb machine is a revolving control panel, mounted on a swing arm, that allows for quicker and more comfortable operation.
