B1200P

B1200P

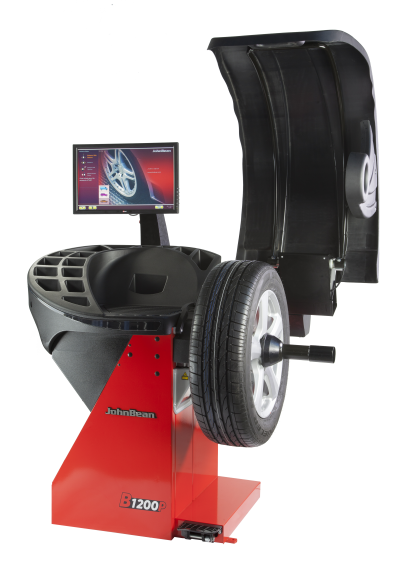

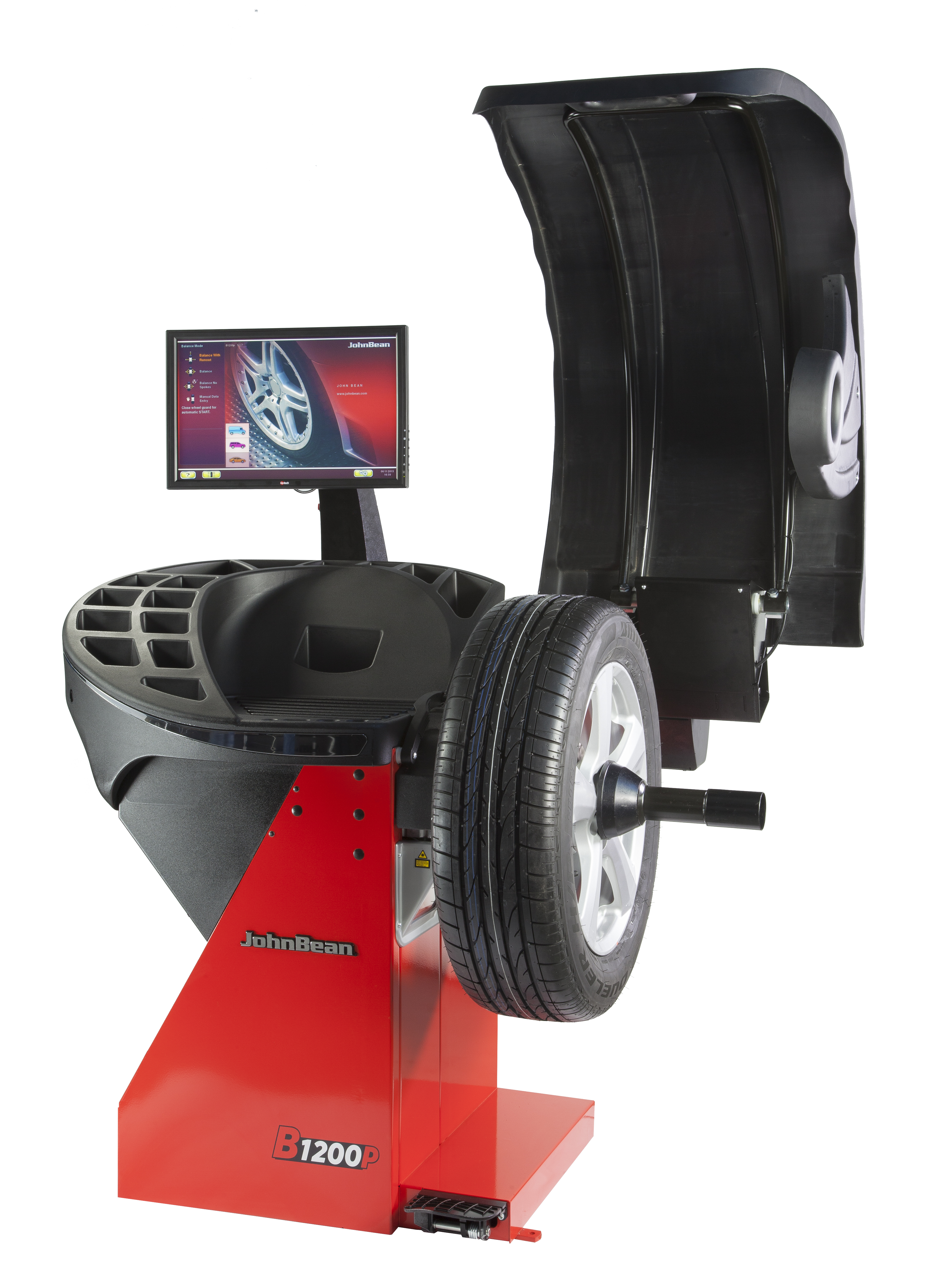

CAR WHEEL BALANCER WITH NON-CONTACT DATA ENTRY AND DIAGNOSTIC FUNCTIONS.

Product description:

The wheel balancer with diagnostic functions for tyre shops, garages and car dealerships with high tyre service volume. With touchscreen monitor and Automatic Non-Contact data entry. Unbalance measurement and run-out diagnosis are performed in a single fast measuring run.

Get flyer here

  • High productivity wheel balancer.
  • Rim scanner for
    – automatic non-contact rim profiling
    – automatic selection of balancing mode and weight position
    – automatic acquisition of rim diameter and offset
  • Smart Sonar for automatic non-contact acquisition of rim width.
  • Run-out diagnosis combined with unbalance measurement in a single fast measuring run.
  • Recommendation for match-mounting, when possible, to reduce vibrations caused by radial run-out.
  • Touchscreen monitor with graphical user interface PLATINUM – fast and very intuitive.
  • easyWeight: Pinpoint laser light indicator to accurately and conveniently position adhesive weights on the wheel.
  • Torque-controlled Power Clamp device – fast and accurate clamping of the wheel.
  • Stop-in-Position feature where the operator only has to touch the amount of unbalance on the screen and the wheel is automatically indexed to correction position.
  • QuickBal for reduced measurement time:Short start-stop cycle time: 4.5 seconds 15″ rim.
  • VPI measurement technique for uncompromised accuracy.
  • Rim lighting to facilitate rim cleaning and speed up data entry and weight positioning.
  • Imbalance minimisation and optimisation programs.
  • Networking capability with the optional networking software.
  • Compatible with asanetwork.
  • Print-out with optional printer.
Categories: ,

Description

Features:

ASANETWORK.

It is a tool that allows equipment to be connected to a garage.
With the asanetwork all relevant information are made available at every workstation in the shop as all machines are connected to the commercial software.

PLATINUM INTERFACE.

Highly intuitive and fast touch-screen monitor with large digits, coloured weight position indicators and PLATINUM user interface – improved intuitiveness and ergonomics.

RADIAL RUN-OUT.

Peak-to-peak and 1st harmonic graphs of wheel run-out are provided for an easy diagnostic of the issues. Rim run-out and matching information are provided when necessary.



MATCH-MOUNTING.

Radial run-out diagnosis of the wheel is performed during unbalance measurement, hence without compromising on productivity. High run-out is automatically detected during rim diagnosis, providing match-mounting.

EASYWEIGHT™

Pinpoint laser identifies exact weight placement location for increased accuracy and efficiency.

RIM SCANNER.

The rim scanner automatically detects rim diameter and offset as well as the number and position of rim spokes. Then it automatically chooses balancing mode, weight types and weight positions.

SPLIT WEIGHT MODE.

Hides adhesive weights behind two adjacent spokes so they cannot be seen from the outside.

OVERSIZE SHAFT.

The 225 mm length allows the use of stud-hole flanges and other accessories for almost every type of rim.

POWER CLAMP™

Patented automatic Power Clamp™ electromechanical clamps the wheel accurately with a constant force, reducing the opportunity for chasing weight.

QUICKBAL™

30% reduced cycle time, less than 4,5 seconds, maintaining the same high accuracy.

VPM TECHNIQUE.

Measurement system for high precision and repeatability.

WHEEL GUARD.



The patented and ergonomic telescopic wheel guard reduces the footprint.

SMART SONAR™

Automatic, non-contact rim width acquisition delivers greater accuracy and ease of use for a 30% savings in complete process when compared to manual operation.
