B500P
B500P - Image 2
B500P - Image 3

B500P

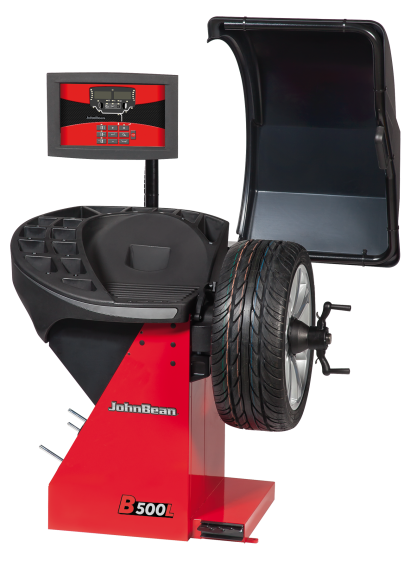

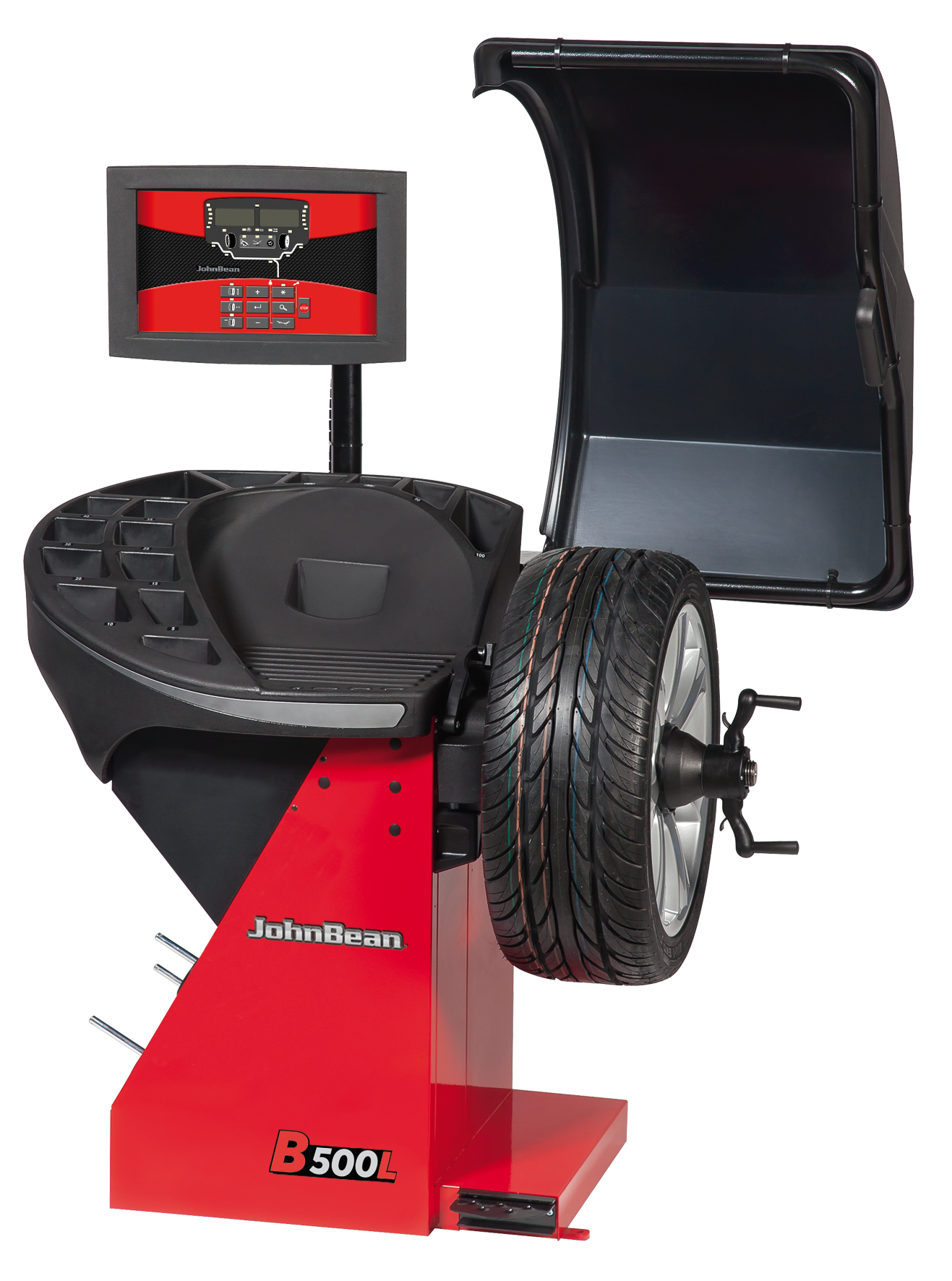

CAR WHEEL BALANCER WITH LED DISPLAY

Product description:

The wheel balancer for tyre shops, car dealerships and garages with medium tyre service volume: with Smart Sonar and EasyWeight pinpoint laser indicator light – an accurate, fast and easy solution to position adhesive weights on the wheel.

Get flyer here

Watch video here

  • Torque-controlled Power Clamp device instead of quick nut.
  • Intuitive dual 3-digit LED display for the amount readings and bright weight position indicators – in ergonomic raised position
  • easyWeight: Pinpoint laser light indicator to accurately and conveniently position adhesive weights on the wheel.
  • Semi-automatic input of offset and rim diameter via 2D SAPE and automatic rim width acquisition via Smart Sonar – fast and easy.
  • Semi-automatic pre-selection of balancing mode via easyAlu.
  • Imbalance minimisation and optimisation programs.
  • VPM measurement technique for uncompromised accuracy.
  • QuickBal for reduced measurement time:
    Short start-stop cycle time: 4.5 seconds (15″ rim).
  • New ergonomic weight tray.





Categories: ,

Description

Features:

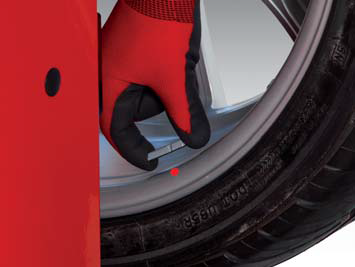

EASYWEIGHT™

Pinpoint laser identifies exact weight placement location for increased accuracy and efficiency.

SPLIT WEIGHT MODE.

Hides adhesive weights behind two adjacent spokes so they cannot be seen from the outside.

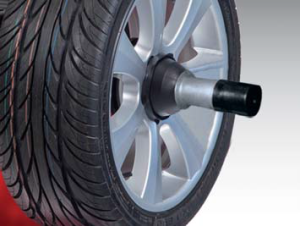

OVERSIZE SHAFT.

The 225 mm length allows the use of stud-hole flanges and other accessories for almost every type of rim.

POWER CLAMP™

Patented automatic Power Clamp™ electromechanical clamps the wheel accurately with a constant force, reducing the opportunity for chasing weight.

QUICKBAL™

30% reduced cycle time, less than 4,5 seconds, maintaining the same high accuracy.

VPM TECHNIQUE.

Measurement system for high precision and repeatability.

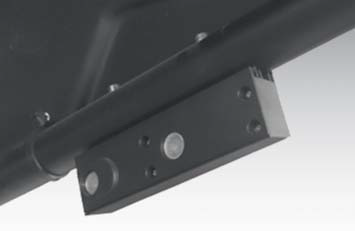

SMART SONAR™

Automatic, non-contact rim width acquisition delivers greater accuracy and ease of use for a 30% savings in complete process when compared to manual operation.

ERGONOMIC DISPLAY.

The raised display increases ergonomic handling.

GAUGE ARM.

Semi-automatic data entry and positioning of adhesive weights.

EASYALU™

Touch the rim with the gauge arm to enter the rim dimensions and automatically select the weight balancing mode.

Versions:

B500L

9702743_B300_B400_B500_B600_GB_2015.03
