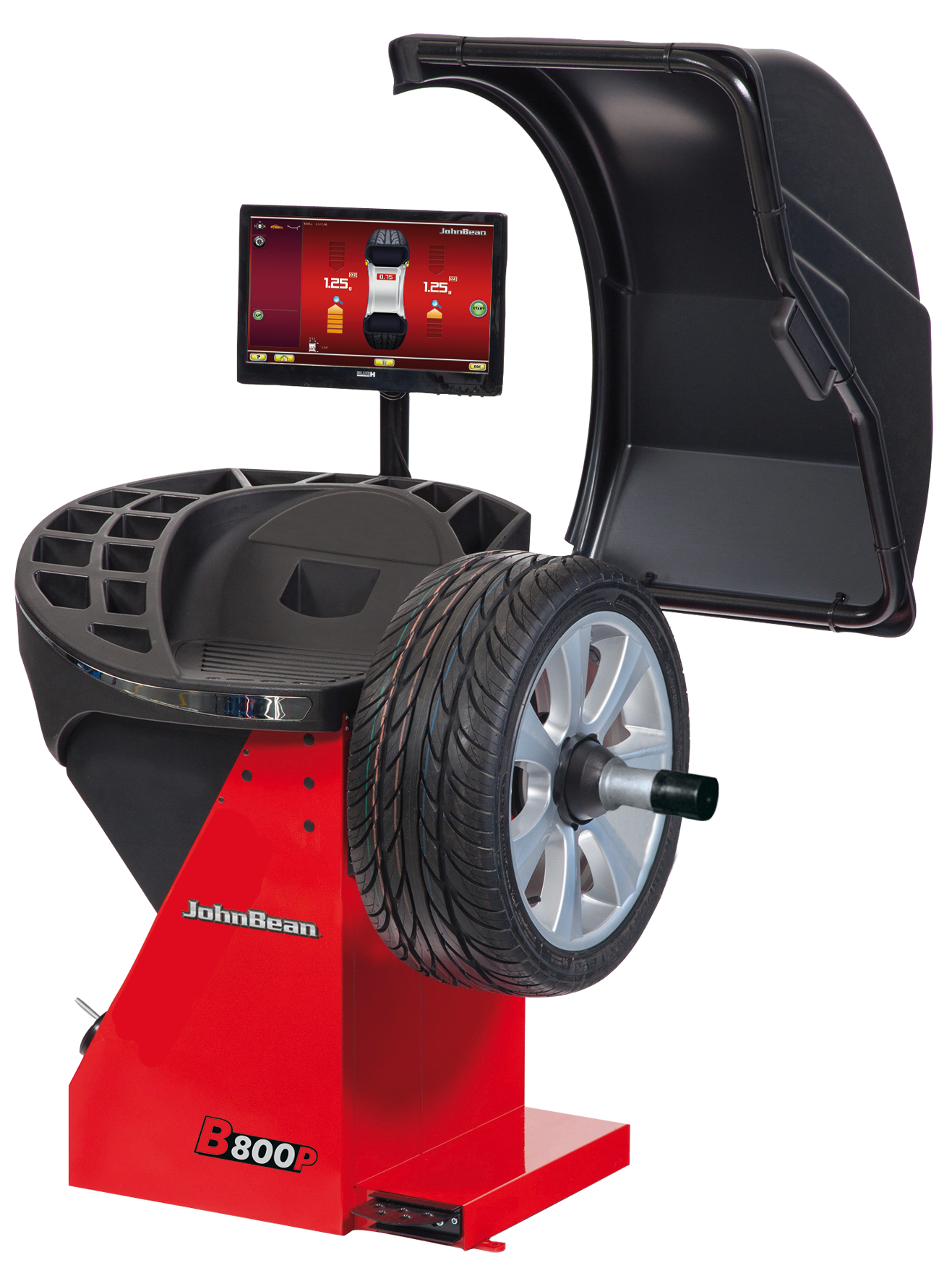

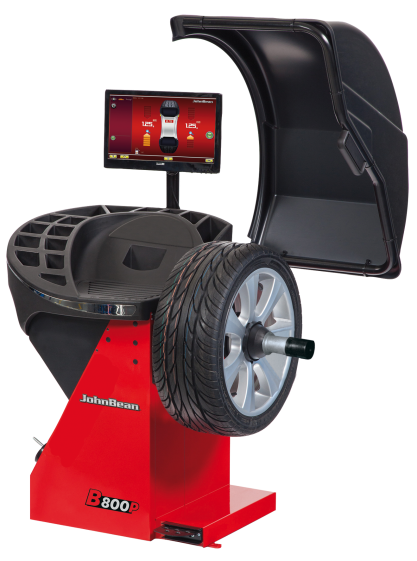

B800P

B800P

CAR WHEEL BALANCER WITH TOUCHSCREEN MONITOR AND NON-CONTACT DATA ENTRY.

Product description:

The wheel balancer for garages, car dealerships, tyre shops and premium workshops with high tyre service volume. With touchscreen monitor, automatic non-contact data entry and easyWeight pinpoint indicator light – An accurate, fast and easy solution to position adhesive weights on the wheel.

Get flyer here

  • High-productivity wheel balancer.
  • Rim scanner for:
    – automatic non-contact rim profiling
    – automatic selection of balancing mode and weight position
    – automatic acquisition of rim diameter and offset
  • Smart Sonar for automatic non-contact acquisition of rim width.
  • Touchscreen monitor with graphical user interface PLATINUM – fast and very intuitive.
  • easyWeight: fast pinpoint bottom weight placement. Pinpoint laser light indicator to accurately position adhesive weights on the wheel
  • Torque-controlled Power Clamp device – fast and accurate clamping of the wheel
  • Stop-in-Position feature where the operator only has to touch the amount of unbalance on the screen and the wheel is automatically indexed to correction position.
  • QuickBal for reduced measurement time:
    Short start-stop cycle time: 4.5 seconds (15’’ rim).
  • VPM measurement technique for uncompromised accuracy.
  • Rim lighting to facilitate rim cleaning and speed up data entry and weight positioning.
  • Imbalance minimisation and optimisation programs.
  • Networking capability with the optional networking software.
  • Compatible with asanetwork.
  • Print-out with optional printer.
Categories: ,

Description

Features:

ASANETWORK.

It is a tool that allows equipment to be connected to a garage.
With the asanetwork all relevant information are made available at every workstation in the shop as all machines are connected to the commercial software.

PLATINUM INTERFACE.

Highly intuitive and fast touch-screen monitor with large digits, coloured weight position indicators and PLATINUM user interface – improved intuitiveness and ergonomics.



EASYWEIGHT™

Pinpoint laser identifies exact weight placement location for increased accuracy and efficiency.

RIM SCANNER.

The rim scanner automatically detects rim diameter and offset as well as the number and position of rim spokes. Then it automatically chooses balancing mode, weight types and weight positions.

SPLIT WEIGHT MODE.

Hides adhesive weights behind two adjacent spokes so they cannot be seen from the outside.

OVERSIZE SHAFT.

The 225 mm length allows the use of stud-hole flanges and other accessories for almost every type of rim.

POWER CLAMP™

Patented automatic Power Clamp™ electromechanical clamps the wheel accurately with a constant force, reducing the opportunity for chasing weight.

QUICKBAL™

30% reduced cycle time, less than 4,5 seconds, maintaining the same high accuracy.

VPM TECHNIQUE.

Measurement system for high precision and repeatability.

WHEEL GUARD.

The patented and ergonomic telescopic wheel guard reduces the footprint.

SMART SONAR™

Automatic, non-contact rim width acquisition delivers greater accuracy and ease of use for a 30% savings in complete process when compared to manual operation.
