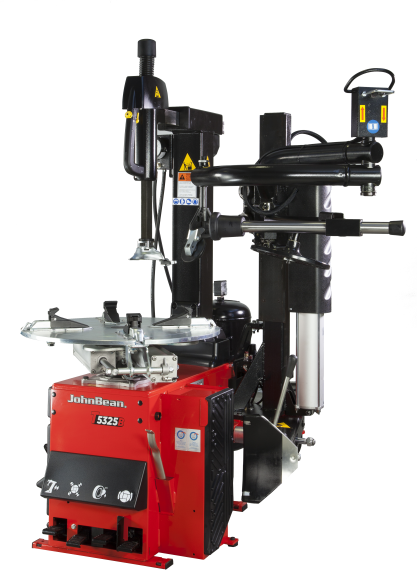

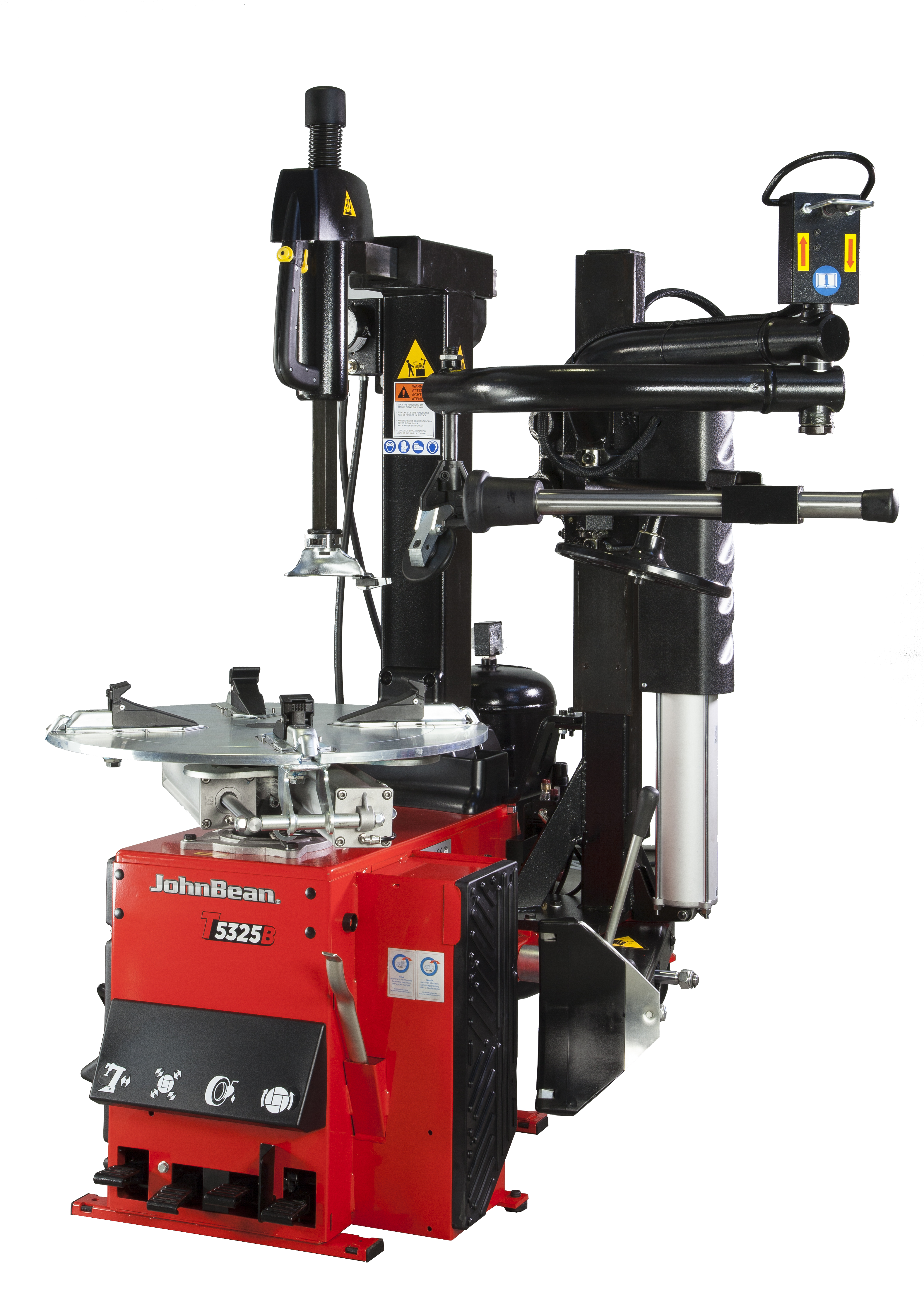

T5325B 2S Plus

PNEUMATIC TILT-BACK POST TYRE CHANGER WITH PROSPEED™ TECHNOLOGY.

Product description:

The tyre changer for use in general service shops and tyre shops with medium tyre service volume – with pneumatic tilt-back post, 22“ outside clamping capability and PROpeed technology.

Get flyer here

  • Certified by wdk for gentle and user-friendly mounting and demounting of UHP and run-flat tyres in line with OEM specifications
  • With pneumatic mounting tool MH 320 pro and Plus kit (standard equipment) for handling of UHP and run-flat tyre systems (additional optional adaptors required for PAX and CSR tyres)
  • PROSpeed™ – the new exclusive self-adjustable speed system with inverter technology:
    – Automatic speed control by inverter that maximises speed depending on the torque applied
    – First speed as low as 7 rpm for critical tasks
    – Second speed automatically adjusted to between 7 and 18 rpm depending on the torque applied
  • Double-acting bead breaker cylinder
  • Mounting head adjustable in spaced-apart position relative to the rim
  • Self-centring four-jaw turntable
  • Plastic protection inside jaws and on mounting head to avoid damage to alloy rims
  • Pedal-operated tyre inflator with pressure gauge fitted on tower
  • Quick-inflating valve
  • Outer clamping range up to 22″
  • With top-side bead seating and inflating kit
  • Pedal-operated pneumatic tilt-back post
  • Post pneumatically locked in working position
  • Bead breaker adjustable in 3 positions
  • Capable of mounting / demounting the majority of wheel assemblies in the market
  • Optional wheel lift CW1015
Categories: ,

Description

Features:

BEAD BRAKER BLADE.

Owing to its special shape the bead breaker blade handles rims most gently and facilitates operation considerably.

GP MODELS.

A direct burst of compressed air facilitates bead seating. The GP models offer a top-side bead seater with a 24-litre tank.

OPTIONAL QUICK-EXCHANGE DEVICE WITH PLASTIC HEAD.

Owing to the quick exchange device, steel and plastic mounting heads can be quickly swapped over.

PLUS CONFIGURATION.

The plus models are certified by wdk. They come standard with MH 320 pro and plus kit that enable the correct mounting and demounting of UHP and run-flat tyres.



PROSPEED™

The innovative technology – patent-protected – that optimizes the torque applied to the wheel and automatically sets the maximum rotation speed of the wheel accordingly.

Versions:

  • T5325 2S Plus  The tyre changer for use in general service shops and tyre shops with medium tyre service volume – with pneumatic tilt-back post, 22“ outside clamping capability and PROpeed technology.
  • T5320B 2S  The tyre changer for use in general service shops and tyre shops with medium tyre service volume – with pneumatic tilt-back post, 22“ outside clamping capability and PROpeed technology.
  • T5320 2S, The tyre changer for use in general service shops and tyre shops with medium tyre service volume – with pneumatic tilt-back post, 22“ outside clamping capability and PROpeed technology.
