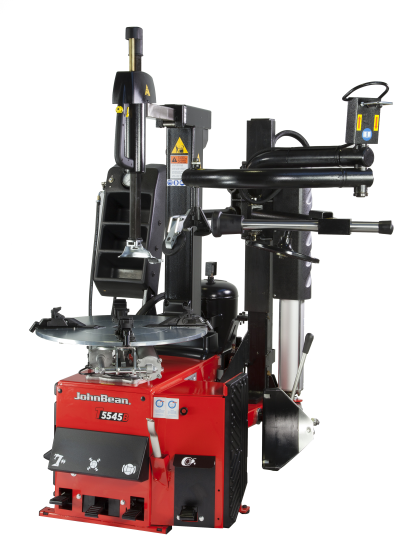

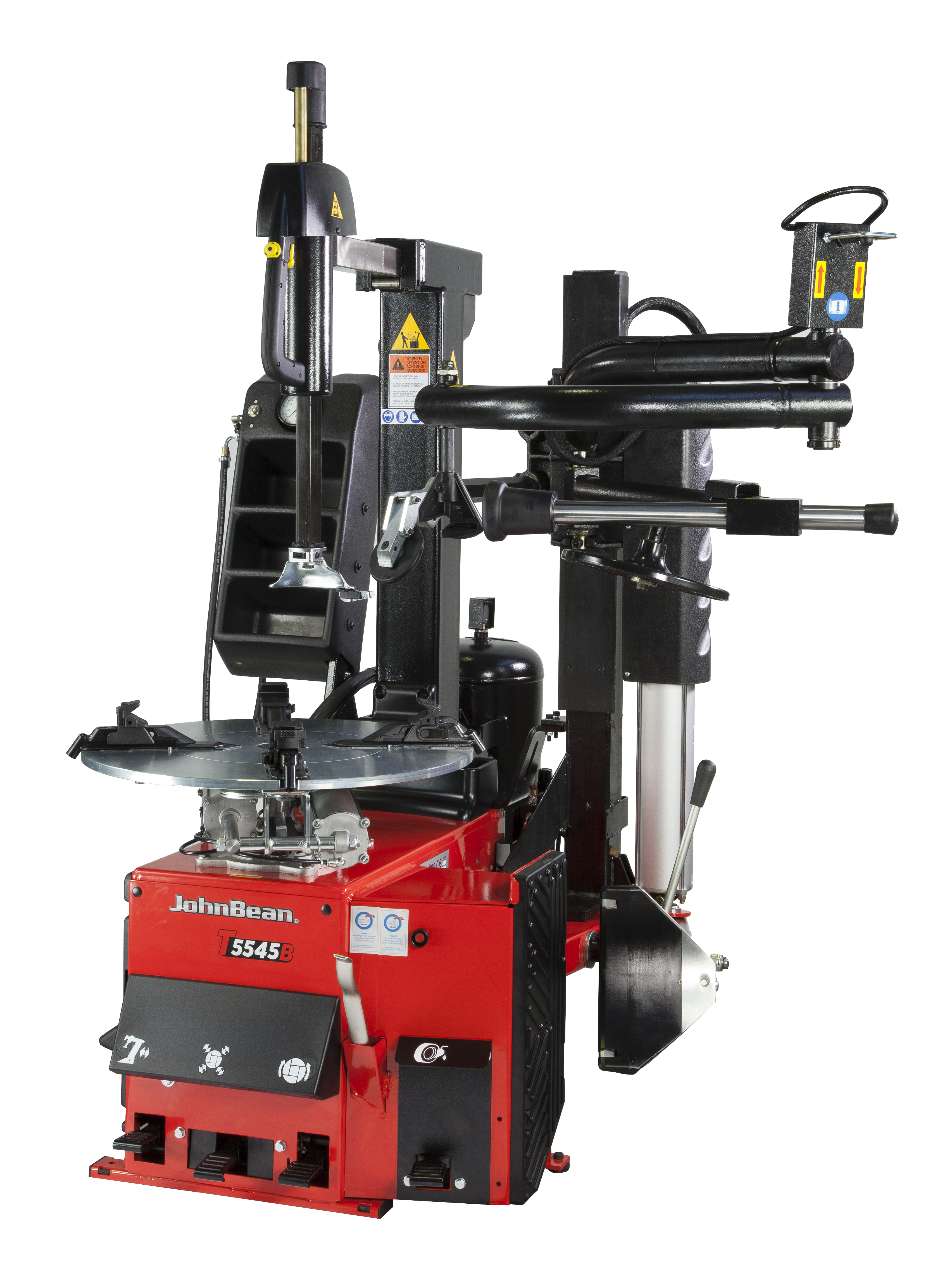

T5545B 2S Plus

T5545B 2S Plus

TYRE CHANGER FOR WHEEL WIDTH UP TO 15″ AND PROSPEED™ TECHNOLOGY

Product description:
The tyre changer for use in high-volume tyre shops and car dealerships – with pneumatic tilt-back post, 24“ outside clamping capability, 15“ maximum wheel width and PROspeed technology.

Get flyer here

  • Certified by wdk for gentle and user-friendly mounting and demounting of UHP and run-flat tyres in line with OEM specifications
  • With pneumatic mounting tool MH 320 pro and Plus kit (standard equipment) for handling of UHP and run-flat tyre systems (additional optional adaptors required for PAX and CSR tyres).
  • PROSpeed™ – the new exclusive self-adjustable speed system with inverter technology:
    – Automatic speed control by inverter that maximises speed depending on the torque applied
    – First speed as low as 7 rpm for critical tasks
    – Second speed automatically adjusted to between 7 and 18 rpm depending on the torque applied
  • Double-acting bead breaker cylinder
  • Mounting head adjustable in spaced-apart position relative to the rim
  • Vertical positioning of the mounting head is carried out pneumatically, too – all settings are controlled through a single switch – quickly and ergonomically
  • Sliding jaws with rounded profile and plastic protection inside offer an outer clamping range of 10″ to 24″, reduced clamping time and increased clamping force owing to cylinder with shorter stroke
  • Conventional mounting / demounting tool (working range 8″ – 24″) with steel mounting head and plastic inserts for gentle operation on wheels
  • Turntable with centre-type sliding jaws. Two clamping cylinders provide 30 to 40 % more clamping force than single-cylinder machines
  • Pedal-operated pneumatic tilt-back post
  • Post pneumatically locked in working position
  • On-side bead breaker with adjustable blade inclination for different wheel diameters, adjustable in three positions to grant high performance and flexibility
  • Tool box with integrated pressure gauge and four ergonomic shelves for valves, tools and accessories, attached on separate tower
  • Pedal-operated inflator
  • Quick-inflating valve
  • With top-side bead seating and inflating kit
  • Low cabinet offers an ergonomic height even with very wide wheels
  • Maximum wheel width of 15″ covers all current OEM wheels in the market
  • Optional wheel lift CW1025
Categories: ,

Description

Features:

BEAD BRAKER BLADE.

Owing to its special shape the bead breaker blade handles rims most gently and facilitates operation considerably.

GP MODELS.

A direct burst of compressed air facilitates bead seating. The GP models offer a top-side bead seater with a 24-litre tank.

OPTIONAL QUICK-EXCHANGE DEVICE WITH PLASTIC HEAD.

Owing to the quick exchange device, steel and plastic mounting heads can be quickly swapped over.

PLUS CONFIGURATION.

The plus models are certified by wdk. They come standard with MH 320 pro and plus kit that enable the correct mounting and demounting of UHP and run-flat tyres.

PNEUMATIC VERTICAL ARM.

Fast and ergonomic: the pneumatic vertical arm facilitates positioning of the mounting head on all wheels.

PROSPEED™

The innovative technology – patent-protected – that optimizes the torque applied to the wheel and automatically sets the maximum rotation speed of the wheel accordingly.

Versions:

T5545 2S Plus:

The tyre changer for use in high-volume tyre shops and car dealerships – with pneumatic tilt-back post, 24“ outside clamping capability, 15“ maximum wheel width and PROspeed technology.

T5540B 2S:

The tyre changer for use in high-volume tyre shops and car dealerships – with pneumatic tilt-back post, 24“ outside clamping capability, 15“ maximum wheel width and PROspeed technology.

T5540 2S:

The tyre changer for use in high-volume tyre shops and car dealerships – with pneumatic tilt-back post, 24“ outside clamping capability, 15“ maximum wheel width and PROspeed technology.
