T7300B

T7300B

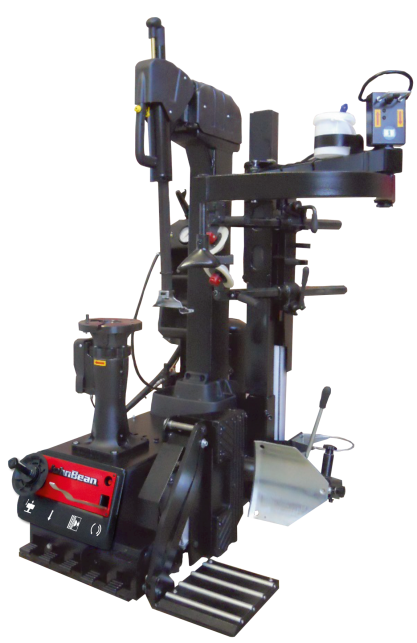

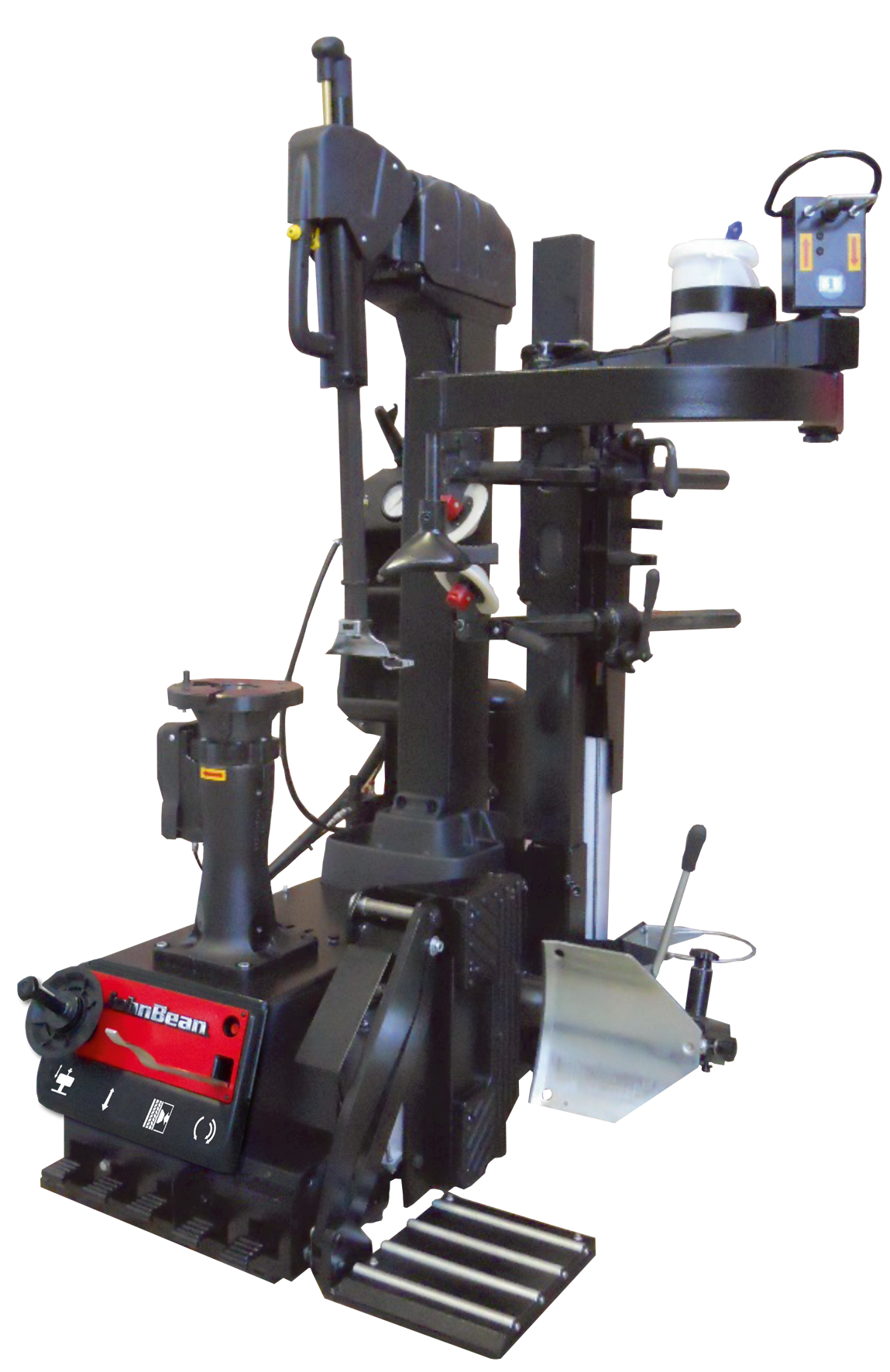

HIGH-VOLUME CAR TYRE CHANGER.

Product Description:

The tyre changer for the use in high-volume tyre shops and car dealerships – conventional solutions combined with innovative centre-clamp system – for wheels up to 44“. With wheel lift and top-side bead seating and inflating kit. Certified by wdk.

Get flyer here

  • Certified by wdk
  • Familiar design of mounting head plus tyre lever and on-side pedal-operated bead breaker blade
  • Innovative centre-clamp design with electro-mechanical clamping flange to clamp the wheel through the centre-bore of the rim:
    – Fast as a turntable tyre changer on steel rims
    – Faster than a turntable tyre changer on UHP and run-flat tyres
  • PROSpeed™ – the new exclusive self-adjustable speed system with inverter technology:
    – Automatic speed control by inverter that maximises speed depending on the torque applied
    – First speed as low as 7 rpm for critical tasks
    – Second speed automatically adjusted to between 7 and 20 rpm depending on the torque applied
  • Tilt-back tower
  • Pneumatic bead assist device to aid in safe use – with 3 h arm
  • Top-side bead seating and inflating kit
  • Wheel lift
  • Capable of handling the majority of wheel assemblies in the market
  • Optional kits are available to clamp reverse-mounted wheels, closed (French) rims and light-truck wheels
  • Optional quick-exchange device for use of different mounting heads
  • Not suitable for motorcycle wheels
Categories: ,

Description

Features:

BEAD BRAKER BLADE.

Owing to its special shape the bead breaker blade handles rims most gently and facilitates operation considerably.

CENTRE CLAMP.

The centre-clamp design has numerous benefits: most important is the drastically reduced risk of damage and that there are no restrictions of the turntables with clamping jaws, while automatic locking of the wheel provides fast, safe and correct clamping of the wheel.

CONVENTIONAL MOUNTING HEAD.

The mounting head with tyre lever and the on-side bead breaker are a favourite choice of operators, combining familiar design with fast operation.

OPTIONAL QUICK-EXCHANGE DEVICE WITH PLASTIC HEAD.

Owing to the quick exchange device, steel and plastic mounting heads can be quickly swapped over.

PLUS CONFIGURATION.

The plus models are certified by wdk. They come standard with MH 320 pro and plus kit that enable the correct mounting and demounting of UHP and run-flat tyres.

PNEUMATIC VERTICAL ARM.

Fast and ergonomic: the pneumatic vertical arm facilitates positioning of the mounting head on all wheels.

PROSPEED™

The innovative technology – patent-protected – that optimizes the torque applied to the wheel and automatically sets the maximum rotation speed of the wheel accordingly.

WHEEL LIFT.

The ergonomic wheel lift reduces fatigue on the operator and increases productivity.









Alternatively Versions:

T7300G with wheel lift as an option.

T7300S with wheel lift and 3h arm for the pneumatic bead assist as options, no top-side bead seating and inflating kit, not certified by wdk.
