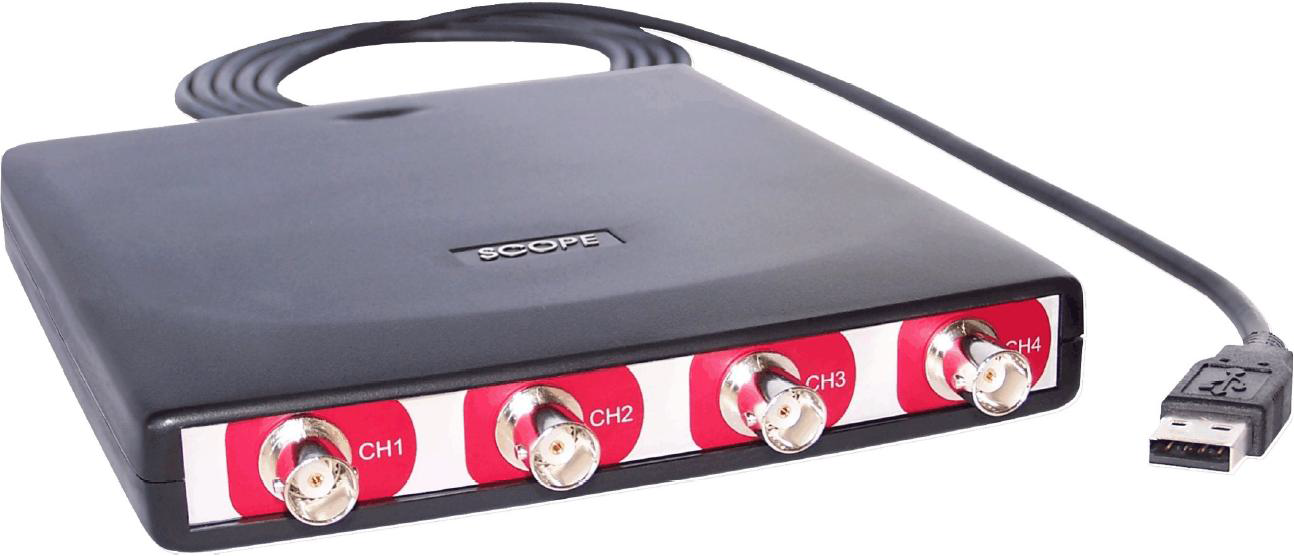

Handyscope HS4, 4 channel oscilloscope

Handyscope HS4 is a professional powerful computer controlled USB oscilloscope and features four input channels. It also features a user selectable 12 bit, 14 bit or 16 bit resolution (14 bit effective, SNR 95 dB), 200 mV to 80 V full scale input range and 128 Ksamples record length per channel. Handyscope HS4 oscilloscope is available in four models, with a maximum sampling rate of respectively 5 MHz, 10 MHz, 25 MHz or 50 MHz on all four channels simultaneously.

Get flyer here

Get operator manual here

Categories: ,

Description

Many instruments in one device:

Using Multi Channel oscilloscope software, the world’s most sophisticated measuring software, the Handyscope HS4 can be used as: High Performance USB Multimeter, High Resolution USB Oscilloscope, USB Spectrum analyzer, USB Data logger/Transient recorder and Protocol analyzer. This powerful and compact measuring instrument can solve almost every measurement problem.

Combining multiple Handyscope HS4s:

When one Handyscope HS4 does not offer enough input channels, the Handyscope HS4 can be coupled to one or more other instruments. This allows to make a combined instrument which will enable simultaneous measuring on all channels of all combined instruments.

Versatile measurement software:

The universal Multi Channel oscilloscope software that is standard delivered with the Handyscope HS4 turns your PC into a storage oscilloscope, a spectrum analyzer, a voltmeter,  a transient recorder and a protocol analyzer and . An intelligent auto setup allows the inexperienced user to perform measurements immediately. The software allows you to save instrument settings on disk. Later these setting files can be recalled, reducing the setup time of your instrument to an absolute minimum.

Fast continuous streaming:

Besides measuring in block mode, the Handyscope HS4 is also capable of performing continuous streaming measurements.  This will create a continuous uninterrupted data stream to the computer. The data can then be displayed on the screen and/or saved to disk.

Portable:

Connected to the fast USB 2.0 interface (High Speed, 480 Mbit/s), the Handyscope HS4 does not require an external power supply, once again fully supporting the “Plug in and measure” motto of TiePie engineering.
