V2400 Lift AC400

V2400 Lift AC400

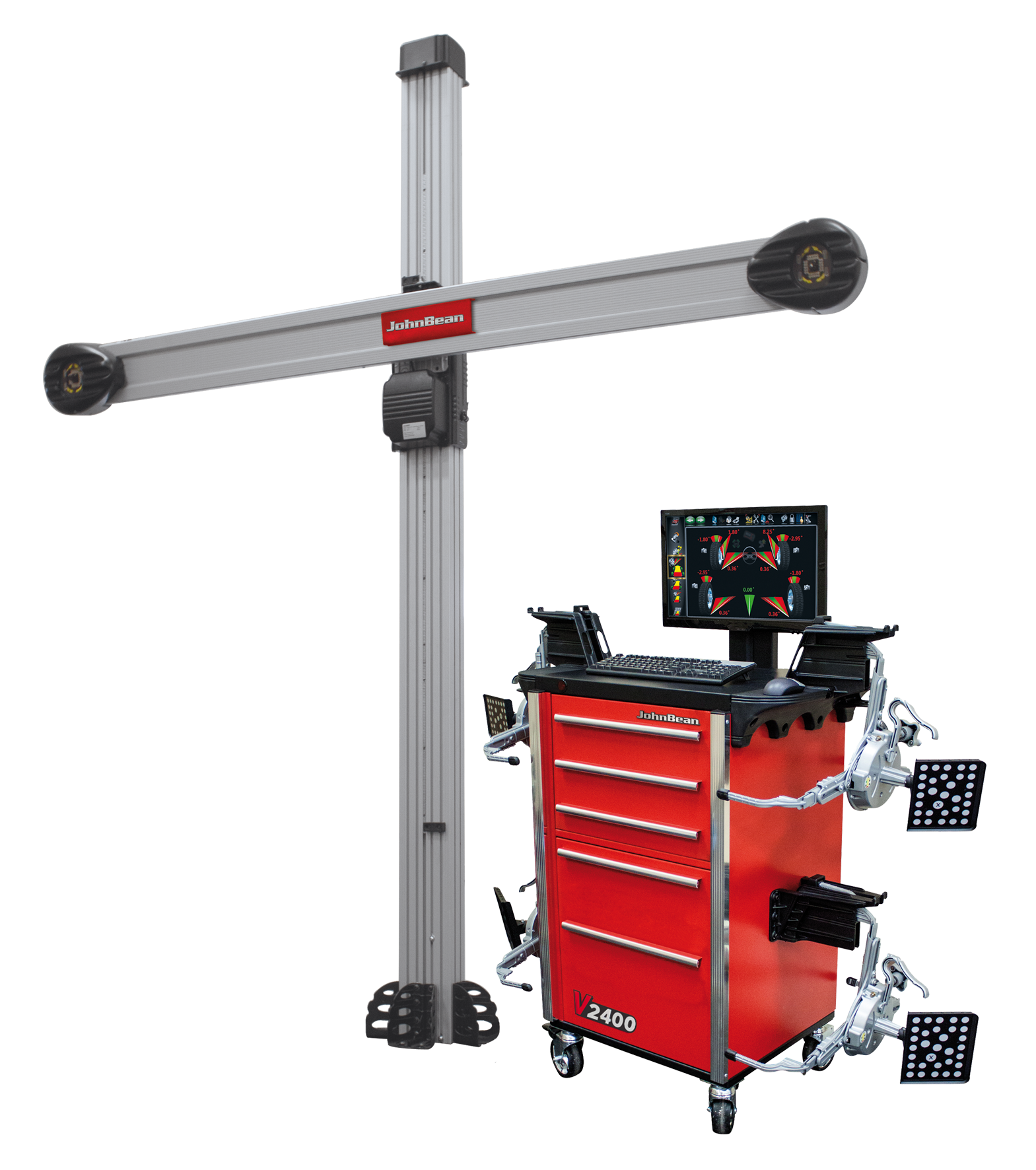

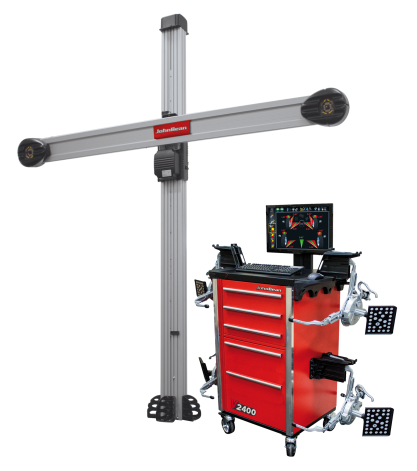

3D CAR WHEEL ALIGNER WITH XD TECHNOLOGY.

Product description:

A high productive fast, accurate and easy to use 3D Wheel aligner for maximum throughput. Ideal for professionals and general workshops.
Use Pro42 Platinum software and can be used with AC100 or Ac400 wheel clamps.

Get flyer here

  • Accurate and repeatable measurements
  • Small and lightweight single-plane targets (XD)
  • Self-centring AC400 quick wheel clamps:
    – secure and consistent attachment owing to clutch limited clamping force
    – securely attach the tyre without contacting the rim
    – large, comfortable handle allows ergonomic use
    – durable and lightweight magnesium construction
    – tyre diameter range 19″ – 39″
  • Productivity-enhancing software Pro42 PLATINUM: a high-resolution ICON-based software program designed to provide simple and effective use of information required by the technician.
  • Measurement of toe, camber, caster, maximum steering angle, rolling radius and cross diagonal
  • ProAckermann, graphical caster trail, scrub radius and SAI
  • A-arm and cradle adjust
  • EZ Toe for easy and convenient adjustment at maximum steering angle
  • EZ Access for measurement with demounted wheels
  • Quick alignment check with audit print-out
  • Moveable camera beam with two high-resolution XD cameras
  • 22“ flat-screen monitor
  • High-end control terminal with printer drawer and embedded PC
  • Optional TIP for ride height measurement
Category:

Description

Features:

ASANETWORK:

It is a tool that allows equipment to be connected to a garage.
With the asanetwork all relevant information are made available at every workstation in the shop as all machines are connected to the commercial software.

EZ-TOE:

Turn the front wheels and access difficult adjustment points while still displaying centred toe readings.

TOUCHLESS AC400 WHEEL CLAMPING SYSTEM.

Fast and easy to use, it provides secure clamping without touching the rim. This patented technology allows accurate and repeatable results coupled with ease of use and durability. No accessories needed to accommodate the full range of tyre sizes.

ADVANCED DIMENSIONING.

Cross-diagonal measurements identify frame or structural damage.
Rolling Radius identify mismatched tyre sizes, a potential cause of vehicle pulling and drive train damage.

VODI™



Vehicle Orientation Directional Indicator (VODI) guides the technician through the measurement process. Reduces the amount of time spent walking back and forth from the vehicle to the aligner.

RIDE HEIGHT MEASUREMENT.

Measure ride height and obtain proper alignment specifications for those vehicles requiring it.

HELP VIDEOS.

View detailed videos of how to make needed adjustments to complete even the most complex tasks.

Alternatively Versions:

  • V2400 Lift AC100
  • V2400 AC400
  • V2400 AC100
